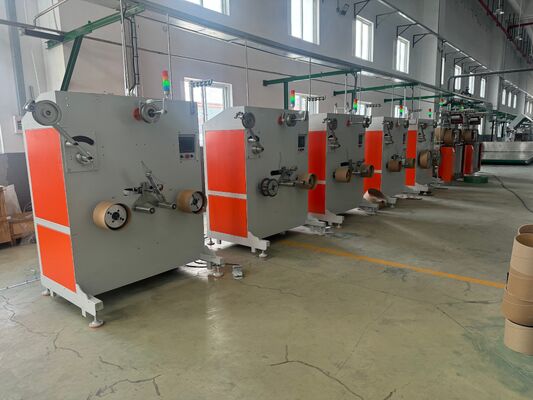

PLC Intelligent PET Strap Winder Touch Screen 300 M/Min Strap Winding Machine

I'm Online Chat Now

PLC Intelligent PET Strap Winder Touch Screen 300 M/Min Strap Winding Machine

PLC Intelligent PET Strap Winder Touch Screen 300 M/Min Strap Winding Machine
PLC Intelligent PET Strap Winder Touch Screen 300 M/Min Strap Winding Machine PLC Intelligent PET Strap Winder Touch Screen 300 M/Min Strap Winding Machine

Large Image :  PLC Intelligent PET Strap Winder Touch Screen 300 M/Min Strap Winding Machine

Product Details:
Place of Origin: Shanghai, China
Brand Name: CHLOE
Certification: CE ISO
Model Number: PETSA-SS250
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: $6,500.00 – $7,300.00
Packaging Details: Wooden Box
Delivery Time: 30-60Days
Payment Terms: T/T
Supply Ability: 30Sets/month
Contact Now Chat Now

PLC Intelligent PET Strap Winder Touch Screen 300 M/Min Strap Winding Machine

Description
Voltage: 220V/380V Characterization: PET Strap Winding Machine
Configure: Standard Model, Customizable Motor: Servo Motor
Warranty: 1 Year Usage: Winding Of PET Strapping Band
Highlight:

intelligent pet strap winder

,

plc intelligent pet strap winder

,

300 m/min strap winding machine

PET Strap Winder offering winding solutions for finished PET straps with adaptability to various core sizes and strap dimensions

Key Features & Advantages
1.Easy Operation & High Productivity,Equipped with user-friendly HMI and intelligent control system, the machine is easy to master without professional training.
2.Outstanding Cost Performance,It runs smoothly with low failure rate and long service life. Featuring solid workmanship and competitive pricing.

Product Overview

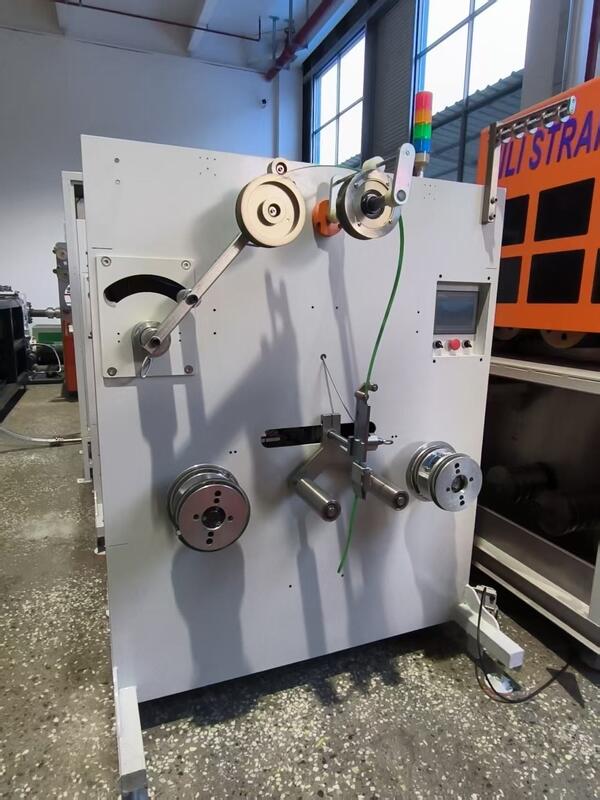

This dual-station PET strapping winder supports weight metering and length metering winding modes. It fits paper cores with a 250mm inner diameter, and other inner diameter sizes are available for customization, compatible with core widths of 150–190mm and strap widths ranging from 9mm to 20mm.Adopting a dual-shaft synchronous winding structure, it produces neat and compact coils without deviation or loose winding.Equipped with a PLC intelligent touch screen control system, the machine supports one-click operation with high cost performance and minor running errors.
Technical Specifications
Item PETFA-SH
Strap Width 9-20mm
Strap Thickness 0.5-1.4mm
Strap Paper Core Width 150-190mm
Mandrel Diameter 250mm
Maximum Coil Diameter 800mm
Winding Speed 50-300 m/min
Number of Mandrels per Winder 2
Winding Servo Power 5500W
Alignment Servo Power 400W

PLC Intelligent PET Strap Winder Touch Screen 300 M/Min Strap Winding Machine

Application Scenarios

1 Winding finished PET straps on production lines

2 Intelligent strapping band production workshops

PLC Intelligent PET Strap Winder Touch Screen 300 M/Min Strap Winding Machine

Packaging & Shipping

Internal Protection: Secure movable internal parts with cable ties, reinforced with stretch film. Vulnerable areas wrapped with corrugated cartons or foam to prevent collision damage.

Outer Packaging: Complete equipment covered with thick PE protective sleeve, fastened tightly with strapping bands to resist impact and vibration. Packed in export-grade wooden cases.

Markings: Clear forklift positions and placement directions marked on cases with warning labels to prevent handling damage.

Accessories: Includes product certificate, packing list, and separately packed spare parts and components.

Final Inspection: Quality inspectors conduct final checks against export standards before shipment.

Frequently Asked Questions
Can you customize the machine? Such as voltage, air shaft size, machine color and other parameters.

Yes. We can customize voltage to suit local power supply, and adjust parameters including paper core size for air shafts, equipment color and more as per your requirements.

What specifications of strapping does the machine support?

This machine is suitable for PET strapping with width of 9-32mm and thickness of 0.5-1.4mm. We can also adjust the rewinder to match your product requirements.

How to select the right machine model?

We will recommend the most suitable model based on your PET strapping specifications, expected rewinding performance and on-site production conditions.

Do you provide installation and commissioning guidance?

We provide full English operation manuals and installation videos, along with free online technical support. Our technicians can also be arranged for on-site installation and commissioning upon your request.

Do you have a professional R&D team?

Yes. We have 16 years of experience in intelligent strapping machinery. All our machines and core components are independently developed. We also developed China's first fully automatic strapping rewinder with strong R&D capabilities.

How do you guarantee equipment quality?

Before delivery, our inspectors check every unit against factory standards on appearance, structure, electrics and safety, plus no-load operation. We also conduct customized tests as required. Test videos and inspection reports will be provided. You are welcome to inspect the machines on-site.
