Semi Automatic PP Strapping Winder High Precision 380V Strapping Devices

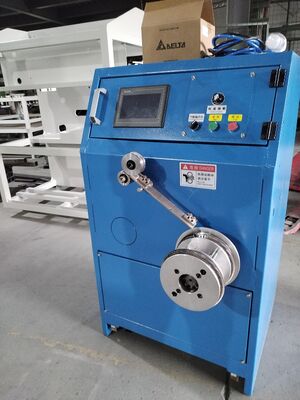

Large Image : Semi Automatic PP Strapping Winder High Precision 380V Strapping Devices

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	CHLOE
Certification:	CE ISO
Model Number:	PPSA-LM

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	$2,300.00 – $3,000.00
Packaging Details:	Wooden Box
Delivery Time:	30Days
Payment Terms:	T/T
Supply Ability:	30Sets/month

Contact Now Chat Now

Semi Automatic PP Strapping Winder High Precision 380V Strapping Devices

Description

Voltage:	380V/50/60hz	Characterization:	PP Strapping Winding Machine
Configure:	Standard Model, Customizable	Warranty:	1 Year
Usage:	Winding Of PP Strapping Band	Model:	PPSA-LM
Highlight:	semi automatic pp strapping winder , pp strapping winder high precision , semi automatic strapping devices

PP Strapping Winder Semi Automatic Device with High Precision Servo Motors and Customizable Strap Dimensions for Industrial

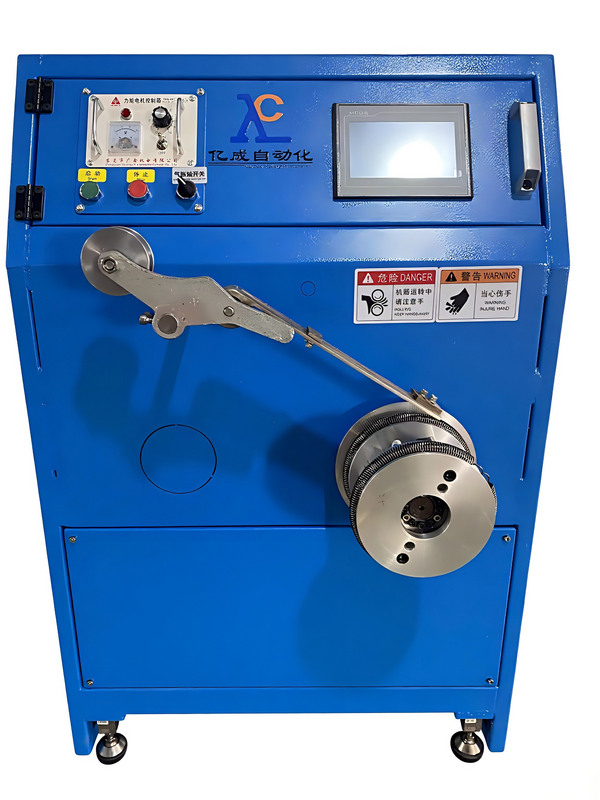

Model PPSA-LM PP strapping coiler serves standard PP strap lines, handling 8–18mm × 0.4–1.4mm straps for 200mm ID cores (custom sizes available). With max 550mm winding OD and 50–300 m/min adjustable speed, it adopts constant tension structure and PLC touch control. Top-brand components guarantee stable tension and neat coils, ideal for cost-effective high-volume production.

Model	PPSA-LM
Strap Width	8-18mm
Strap Thickness	0.4-1.4mm
Strap Paper Core Width	≤200mm
Mandrel Diameter	200mm
Maximum Coil Diameter	500mm
Winding Speed	50-300 m/min
Number of Winding Station	1
Winding Servo Power	1500W
Alignment Servo Power	400W
Machine Dimension	1400mm805mm841mm (LWH)
Machine Weight	Approx. 150KG
Working Voltage	380V / 50/60Hz

Semi Automatic PP Strapping Winder High Precision 380V Strapping Devices

Key Features & Advantages

Custom air shaft with wide adaptability
Constant tension system prevents strap offset and loose coils

Application Scenarios

Designed for winding finished PP strapping on production lines
Also suitable for new energy and chemical packing tape manufacturers

Packaging & Shipping

Internal Protection: Secure movable internal parts with cable ties, reinforced with stretch film. Vulnerable areas wrapped with corrugated cartons or foam to prevent collision damage.

Outer Packaging: Complete equipment covered with thick PE protective sleeve, fastened tightly with strapping bands to resist impact and vibration. Packed in export-grade wooden cases.

Markings: Clear forklift positions and placement directions marked on cases with warning labels to prevent handling damage.

Accessories: Includes product certificate, packing list, and separately packed spare parts and components.

Final Inspection: Quality inspectors conduct final checks against export standards before shipment.

Semi Automatic PP Strapping Winder High Precision 380V Strapping Devices

Frequently Asked Questions

Can you customize the machine? Such as voltage, air shaft size, machine color and other parameters.

Yes. We can customize voltage to suit local power supply, and adjust parameters including paper core size for air shafts, equipment color and more as per your requirements.

What specifications of strapping does the machine support?

This machine is suitable for PP strapping with width of 9-32mm and thickness of 0.5-1.4mm. We can also adjust the rewinder to match your product requirements.

How to select the right machine model?

We will recommend the most suitable model based on your PET strapping specifications, expected rewinding performance and on-site production conditions.

Do you provide installation and commissioning guidance?

We provide full English operation manuals and installation videos, along with free online technical support. Our technicians can also be arranged for on-site installation and commissioning upon your request.

Do you have a professional R&D team?

Yes. We have 16 years of experience in intelligent strapping machinery. All our machines and core components are independently developed. We also developed China's first fully automatic strapping rewinder with strong R&D capabilities.

How do you guarantee equipment quality?

Before delivery, our inspectors check every unit against factory standards on appearance, structure, electrics and safety, plus no-load operation. We also conduct customized tests as required. Test videos and inspection reports will be provided. You are welcome to inspect the machines on-site.
