Precision Pet Strap Manufacturing Machine Wire Pipe Filament Pet Strap Machine

Description
Voltage: 220V-480V Core Challenge: Hydrolysis-Prone & Narrow Processing Window
Application: Wire, PIPE, Sheet, Filament Temperature Control Accuracy: ±1°C
Melt Uniformity: High Warranty: 1 Year
Highlight:

precision pet strap manufacturing machine

,

pet strap manufacturing machine wire

,

filament pet strap machine

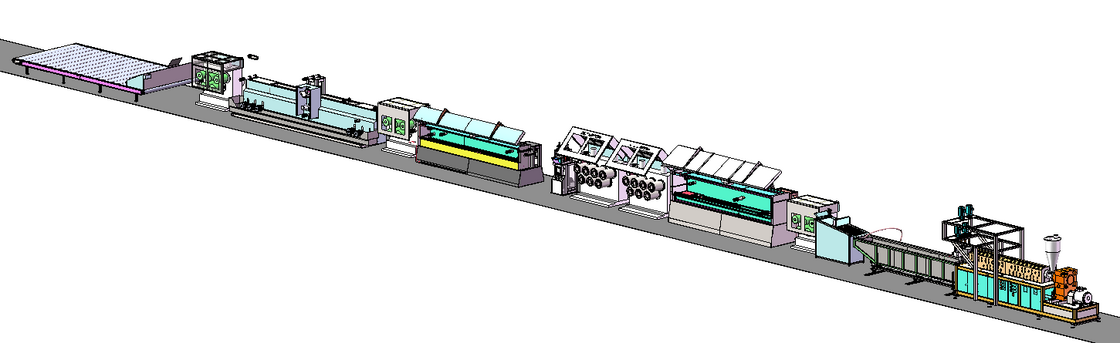

Precision Extrusion PET Strap Production Line Mastering Material

Product Introduction
This production line is engineered specifically to overcome the sensitive processing characteristics of PET material. PET is prone to hydrolysis, and its melt viscosity is extremely sensitive to temperature variations. Our integrated deep dehumidification drying system and high-precision extrusion temperature control module ensure ultra-low raw material moisture content (≤50ppm) and uniform, stable melt temperature (±1°C). This creates the ideal processing environment for PET, forming the foundation for excellent product mechanical properties, high clarity, and stable output rates—enabling true mastery of PET's processing window.
Main Specifications
  • Core Challenge Response: Deep dehumidification drying system addresses PET's hydrolysis tendency with high-precision, multi-zone independent temperature control
  • Drying System: Honeycomb rotor dehumidifying dryer with stable dew point ≤ -40°C and adjustable drying temperature
  • Extrusion System: PET-specific barrier screw for optimized mixing and shear; cast aluminum heaters with PID intelligent temperature control
  • Melt Handling: Optional melt pump stabilizes extrusion pressure and flow, eliminates screw pulsation, and improves thickness uniformity
  • Quality Control: Dual precision control from raw material drying to melt temperature processing
Technical Parameters
Parameter Category Parameter Item Specification / Description
Drying System Dehumidification Method Honeycomb Rotor Dehumidification
Dew Point Temperature ≤ -40°C
Drying Temperature Range 150 - 180 °C
Material Moisture Content (after treatment) ≤ 50 ppm
Extrusion System Screw Type Barrier Type, PET-specific
Temperature Control Zones Barrel 5 zones + Die 2 zones
Temperature Control Accuracy ±1.0 °C
Heating Method Cast Aluminum Heaters
Melt Quality Pressure Fluctuation (with optional melt pump) ≤ ±0.5%
Melt Temperature Uniformity Full-process temperature difference ≤ 4 °C



FAQ

1Q : How do you make sure the machine quality?
To make sure the machine is qualified before deliver to our customer,we always arrange productiontesting,customer can assign the testing strap's specification.Customer could join the testing process orwe can provide video to show customer.
2Q : Do you have a professional team for the development of mechanical equipment?
Our R&D team comprises seasoned engineers and specialists from the plastic machinery sector. We have independently developed and manufactured the first fully intelligent strapping winders in China, exporting our products to Europe, the United States, and other regions.
3Q : What are the advantages of your strapping and packaging equipment?
Yicheng Automation,Committed to innovation, we continuously developing cutting-edge technologies in the packaging plastics machinery sector. With specialized expertise in fully intelligent plastic strapping rewinding systems, we deliver high cost-performance solutions engineered for customer success.
4Q : What are your after-sales services?
Warranty: One year from the delivery date indicated on the Bill of Lading (B/L).
During the warranty period, the seller will provide free parts and online service, except for any exclusions.
After the warranty period, the seller will supply parts at a cost.
Lifelong responsibility.
